The Invisible Bottleneck of Smart Sorting: The Real Impact of Stroke-Force Curves and Duty Cycles on Conveyor System Reliability
The Invisible Bottleneck of Smart Sorting: The Real Impact of Stroke-Force Curves and Duty Cycles on Conveyor System Reliability
The Suction Gap Between 5mm and 10mm Stroke is Not Linear

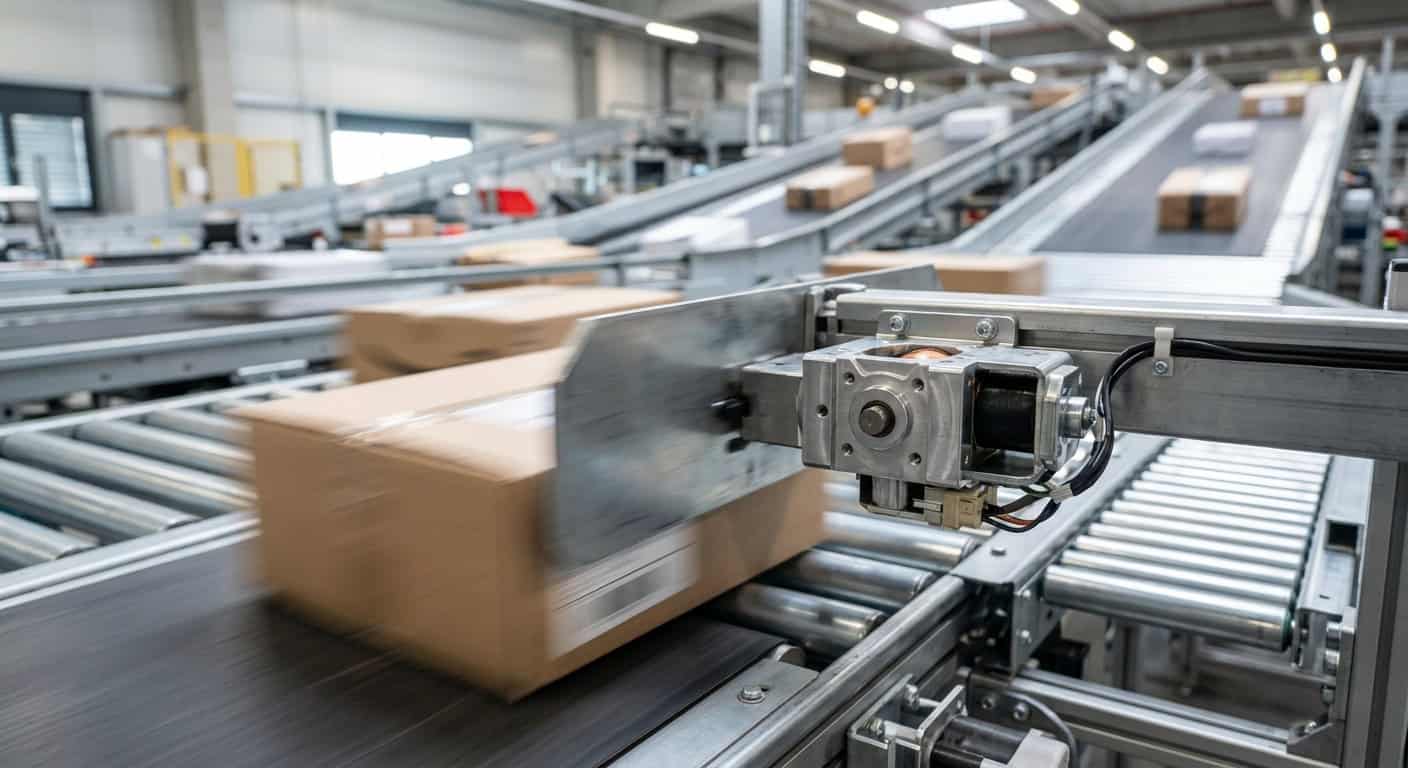

Many early failures in logistics sorting lines stem from designers’ over-reliance on the solenoid’s “stroke-force curve.” When the stroke increases from 5mm to 10mm, the end suction often exhibits exponential decay rather than the linear change expected on engineering drawings. In smart conveyor systems, the initial movement of levers or baffles requires the most force, yet this is exactly when the electromagnetic actuator is at its weakest.
Magnetic circuit design determines the impact of the air gap on magnetic flux density. If a long-stroke specification is chosen to pursue greater distance while ignoring insufficient initial suction, it leads to sorting latency, resulting in package collisions on high-speed belts. This is not a problem that can be solved simply by increasing current, because magnetic saturation means added current cannot linearly improve suction; it only accelerates coil heating—this is a non-linear critical point often ignored during selection.
Behavioral Differences Between AC and DC Actuators at High-Speed Sorting Frequencies
Why does an AC solenoid produce extra vibration noise on a sorting arm at the same operating frequency? This involves the inrush current and pole chatter phenomena unique to AC solenoids. In smart logistics systems, frequent starts and stops place extremely high demands on the thermal management of driving components.
Characteristic Indicator
DC Direct Current Actuator
AC Alternating Current Actuator
Response Speed
Slower (requires magnetic field buildup)
Extremely fast (large inrush current)
Temperature Rise Control
Stable; current decreases as resistance increases
Coils burn out easily if not fully seated
Operating Noise
Extremely low
Presence of 50/60Hz electromagnetic humming
Long-term Life Performance
Excellent; suitable for high-frequency switching
Fair; mechanical wear is more evident
table>
Under high-frequency switching, the increase in coil resistance caused by thermal drift is the primary cause of suction drop. When designing conveyor baffles for 24/7 operation, a safety margin of at least 15-20% must be included. Selections too close to specification limits will show fatigue once the ambient temperature rises by 10°C.
Residual Magnetism: Reset Latency Misdiagnosed as Spring Fatigue
Even after cutting the power, sorting levers sometimes delay over 50ms before resetting, which is fatal for lines handling over 100 packages per minute. Engineers often tend to replace them with stronger return springs, but this further compresses the effective suction of the solenoid, creating a vicious cycle.
Residual Magnetism is a physical property of the iron core material; when the magnetic circuit is completely closed and there is no demagnetization mechanism, the remaining magnetic force is enough to overcome the tension of a weak spring.
Solutions usually involve adding non-magnetic spacers or optimizing pole face treatments rather than simply strengthening external springs. The “intelligence” of a smart system should manifest in precise control of physical details rather than relying on over-designed compensation. A good actuator design features special treatment on the center plunger surface to ensure the magnetic circuit breaks instantly upon power-off.
Duty Cycle Decisions within a 500ms Cycle
In a 500ms cycle, if the duty cycle (power-on time ratio) consistently exceeds 25%, standard specification products risk insulation class failure. Loads in smart conveyor systems are variable; when package accumulation causes frequent lever action, the actuator’s duty cycle spikes instantly. Shih-Kie Technology, when assisting OEM customers in development, prioritizes thermal balance under these extreme conditions over nominal values.
Choosing coils with high heat resistance (such as Class H or higher) and optimized magnetic circuit structures allows actuators to withstand higher frequency burst loads without increasing volume. This is especially critical for space-constrained cross-belt sorters. Correct specification decisions should start by working backward from the minimum suction point at the end of the stroke, reserving power buffers for thermal drift.
Specific actionable recommendations: 1. Request suppliers to provide stroke-force curves under thermal steady-state conditions, not just cold-state data. 2. Prioritize DC drives with PWM control in high-frequency sorting applications to reduce temperature rise. 3. Confirm whether the residual magnetism elimination mechanism meets the system’s millisecond-level reset requirements.
