Magnetic Circuit Saturation and Temperature Rise: Mechanical Calculations for Tubular Solenoids in Heavy-Duty Industrial Locking

The Mathematical Cost of Magnetic Circuits and Air Gaps

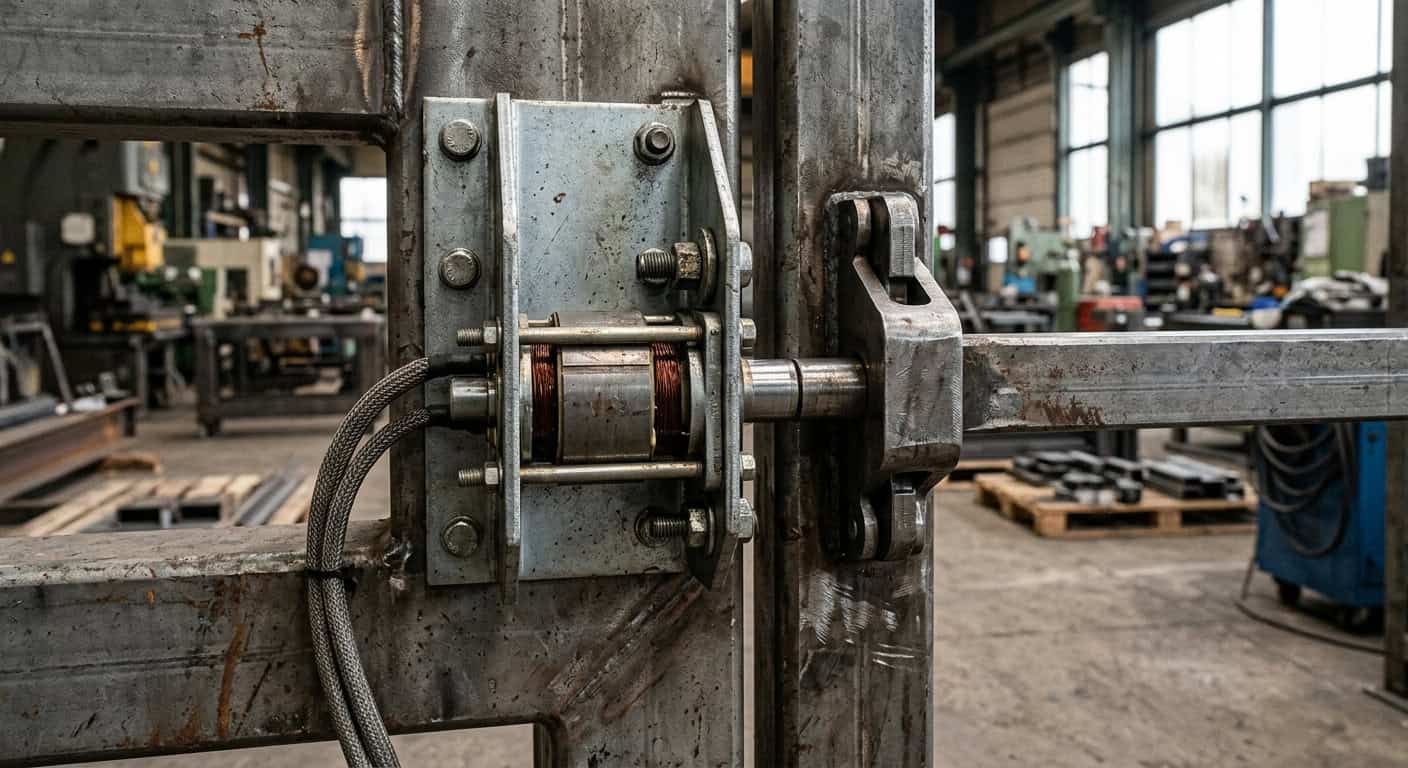

A static holding force of 1200 Newtons is just a number on a design drawing, but when a Tubular Solenoid is actually installed on a heavy-duty gate, a slight shift in the magnetic circuit saturation point will compromise the locking performance.

I admit that when calculating electromagnetic pull, most engineers are accustomed to applying the standard formula $F = (N times I)^2 times mu_0 times A / (2 times g^2)$, but this ignores the non-linear effects of magnetic leakage from the tubular housing.

When taking apart a failed heavy-duty lock, you will find that if the residual air gap (Air gap) between the plunger (Plunger) and the pole face increases by just 0.1mm, the pull force decays by the square.

The Dynamic Trade-off Between Holding Force and Temperature Rise

What isn’t mentioned on the drawings is that while the tubular structure provides excellent magnetic field shielding, it also limits the heat dissipation area. When the duty cycle (Duty cycle) exceeds 25%, the increase in coil resistance leads to a drop in current, and the final pull force can drop to below 70% of the initial value.

Since the pull force decreases with temperature, why not just increase the driving current?

Looking at it from another perspective, although increasing the ampere-turns (Ampere-turns) can enhance the initial pull, the increase in magnetic flux density after saturation is extremely limited, and all excess energy is converted into Joule heat (Joule heat).

A 50-degree temperature rise is a watershed. When the ambient temperature is 40°C and the coil is continuously energized to reach 90°C, the copper wire resistivity increases by about 28%, meaning the pull force at the same voltage is directly reduced by 30%.

I must say that the cost of pursuing extreme locking force is usually a shortened lifespan, because high power density accelerates the aging of the insulated magnet wire, especially in sealed industrial environments where heat is difficult to dissipate.

You can imagine it like this: a magnetic circuit is like a water pipe, and the pipe diameter determines the maximum flow rate. Forcing more water in will only lead to overflow and overheating of the pipes. This is exactly why the ratio of the tubular wall thickness to the plunger’s cross-sectional area needs to be precisely calculated.

The Hidden Indicators of On-site Acceptance

When evaluating the reliability of heavy-duty locking applications, side load (Side load) is the real killer.

During testing, have you considered how the friction coefficient between the internal plunger and the tube wall changes the action response time when the latch is subjected to a 50kg shear force?

From Calculation to Practical Specification Decision-making

But the problem is that theoretical calculations often fail to cover the cumulative tolerances of mechanical installation and the friction loss caused by environmental dust.

Shiejye Technology, when handling heavy-duty warehouse automation locking cases, usually recommends reserving a 1.5x safety factor (Safety factor) and performing special hardening treatments on the plunger surface to cope with high-frequency friction.

Put simply, it’s about trading material costs for maintenance intervals. By setting the coil temperature below 130°C during the magnetic circuit design phase, you can ensure that the locking mechanism will not fail due to continuous operation.
